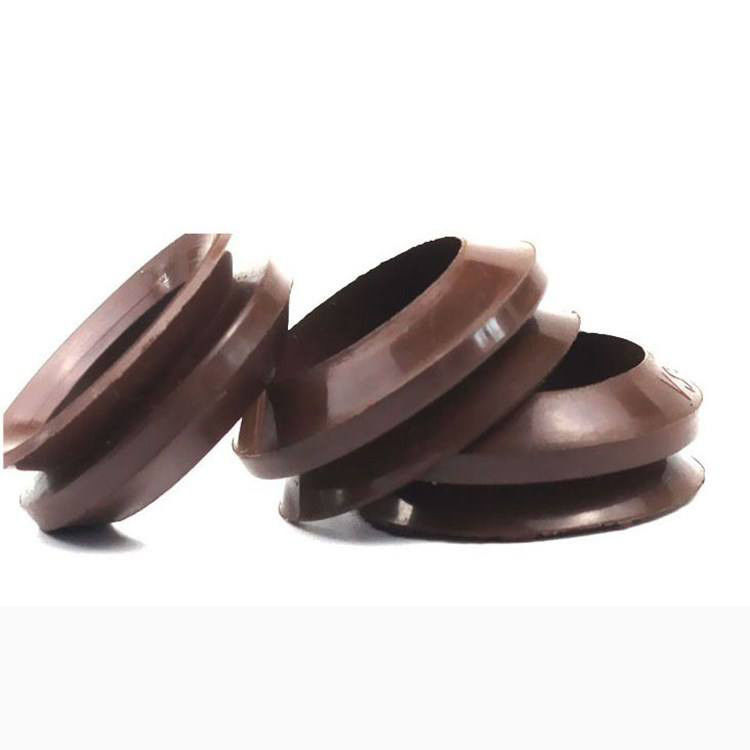

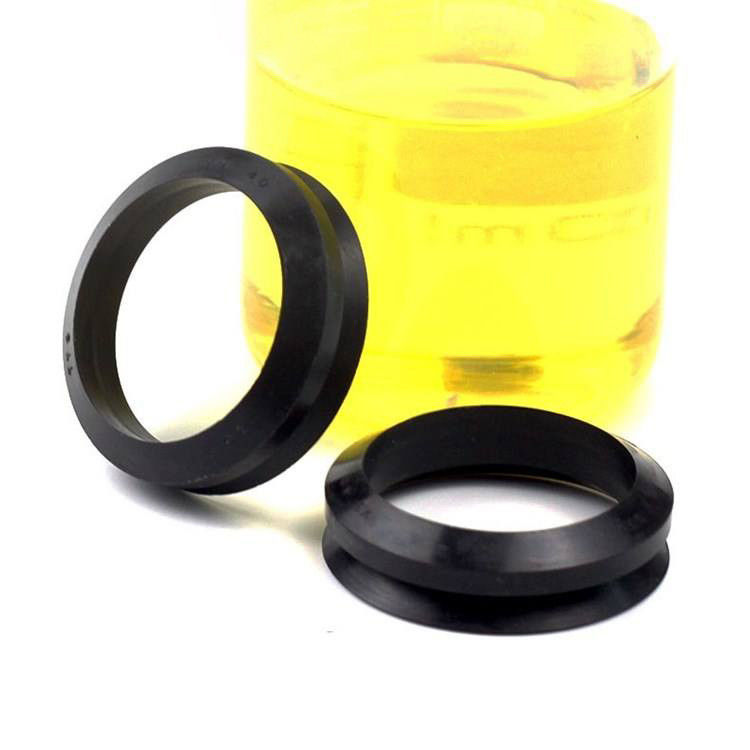

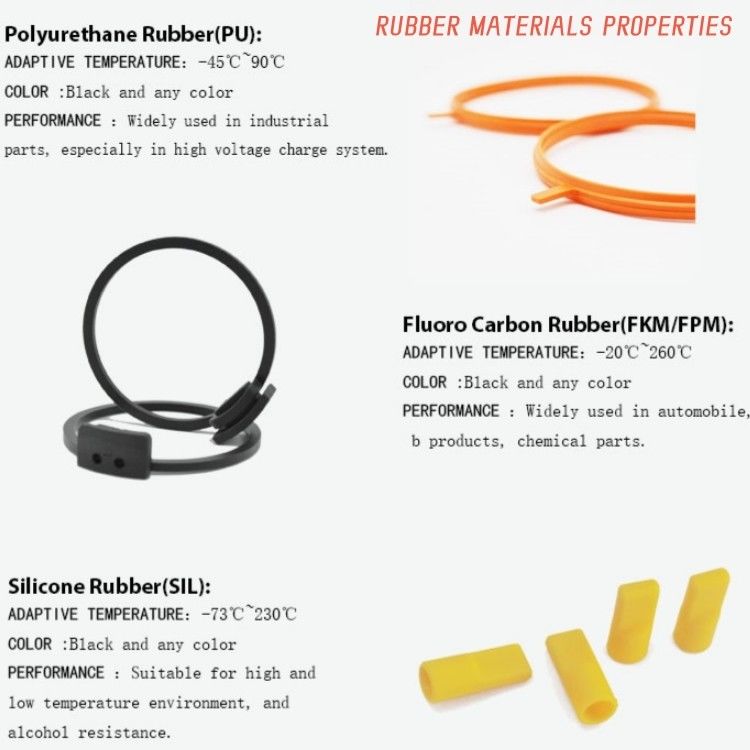

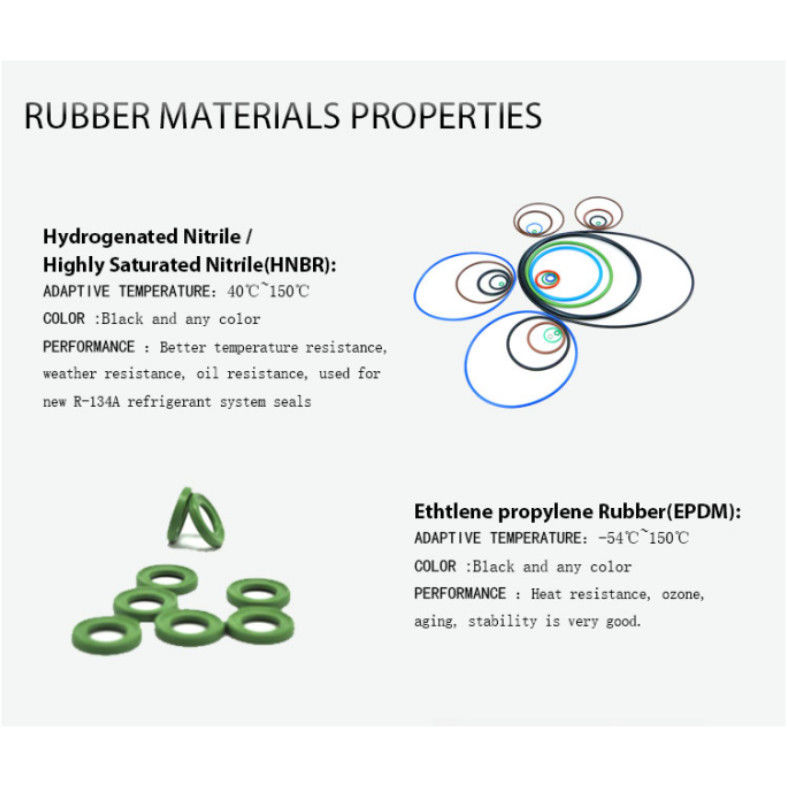

Hydraulische cilinder FKM Rubber V-Ring Waterzegel NBR Rubber V-Seal VS Rotary Shaft Seal Ring

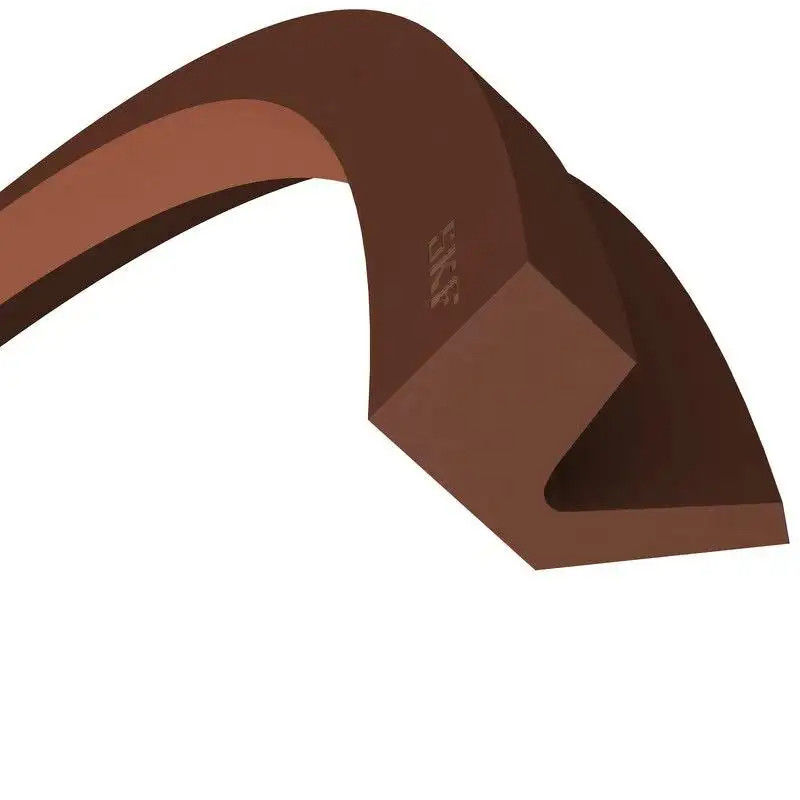

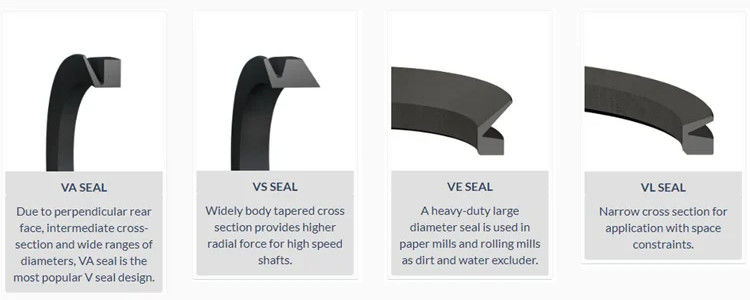

De type S-V-ringen met schematische rug dienen als een drukloze, axiale staafdichting die op een as wordt vastgeklemd.stof en spatten in de constructieVerkrijgbaar in maten van.180 " (4,5 mm) as tot 8,270 " (210 mm).

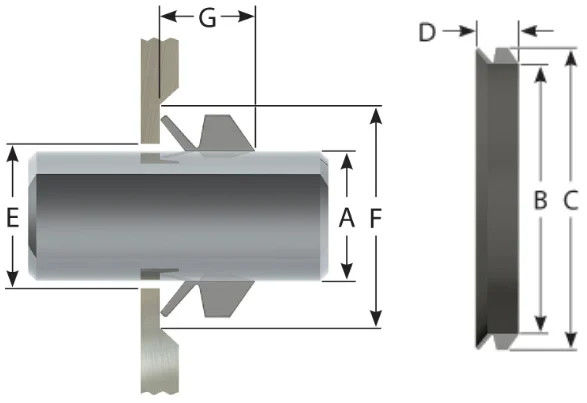

| Afmetingen van de zegel | Dimensies van de woning | ||||||
| Een | B. | C | D | E | F | G | |
| Deelnummer | Schachtdiameter | Identiteit. | Overdosis | Hoogte | Identiteit. | Overdosis | Breedte |
| VS 005 | 4.50-5.50 | 4.00 | 8.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 006 | 5.50 · 6.50 | 5.00 | 9.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 007 | 6.50-8.00 | 6.00 | 10.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 008 | 8.00-9.50 | 7.00 | 11.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 010 | 9.50-11.50 | 9.00 | 15.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 012 | 11.50-13.50 | 10.50 | 16.50 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 014 | 13.50-15.50 | 12.50 | 18.50 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 016 | 15.50-17.50 | 14.00 | 20.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 018 | 17.50-19.00 | 16.00 | 22.00 | 7.70 | A+2.00 | A+9.00 | 6.70 ± 0.60 |
| VS 020 | 19.00-21.00 | 18.00 | 26.00 | 10.50 | A+2.00 | A+12.00 | 9.00±0.80 |
| VS 022 | 21.00-24.00 | 20.00 | 28.00 | 10.50 | A+2.00 | A+12.00 | 9.00±0.80 |
| VS 025 | 24.00-27.00 | 22.00 | 30.00 | 10.50 | A+2.00 | A+12.00 | 9.00±0.80 |
| VS 028 | 27.00-29.00 | 25.00 | 33.00 | 10.50 | A+3.00 | A+12.00 | 9.00±0.80 |
| VS 030 | 29.00-31.00 | 27.00 | 35.00 | 10.50 | A+3.00 | A+12.00 | 9.00± 0.80 |
| VS 032 | 31.00-33.00 | 29.00 | 37.00 | 10.50 | A+3.00 | A+12.00 | 9.00±0.80 |
| VS 035 | 33.00-36.00 | 31.00 | 39.00 | 10.50 | A+3.00 | A+12.00 | 9.00±0.80 |
| VS 038 | 36.00-38.00 | 34.00 | 42.00 | 10.50 | Een A + 3.00 | A+12.00 | 9.00±0.80 |
| VS 040 | 38.00-43.00 | 36.00 | 46.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 045 | 43.00-48.00 | 40.00 | 50.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 050 | 48.00-53.00 | 45.00 | 55.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| V5055 | 53.00-58.00 | 49.00 | 59.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 060 | 58.00-63.00 | 54.00 | 64.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 065 | 63.00-68.00 | 58.00 | 68.00 | 13.00 | A+3.00 | A+15.00 | 11.00±1.00 |
| VS 070 | 68.00-73.00 | 63.00 | 75.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 075 | 73.00-78.00 | 67.00 | 79.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 080 | 78.00-83.00 | 72.00 | 84.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 085 | 83.00-88.00 | 76.00 | 88.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 090 | 88.00-93.00 | 81.00 | 93.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 095 | 93.00-98.00 | 85.00 | 97.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 100 | 98.00-105.00 | 90.00 | 102.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 110 | 105.00 · 115.00 | 99.00 | 113.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 120 | 115.00-125.00 | 108.00 | 122.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 130 | 125.00-135.00 | 117.00 | 131.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 140 | 135.00-145.00 | 126.00 | 140.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 150 | 145.00-155.00 | 135.00 | 149.00 | 18.00 | A+4.00 | A+21.00 | 15.50±1.50 |
| VS 160 | 155.00 · 165.00 | 144.00 | 160.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 170 | 165.00-175.00 | 153.00 | 169.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 180 | 175.00-185.00 | 162.00 | 178.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 190 | 185.00-195.00 | 171.00 | 187.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
| VS 199 | 195.00-210.00 | 180.00 | 196.00 | 20.50 | A+5.00 | A+24.00 | 18.00±1.80 |
